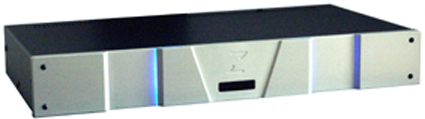

The Z series: Stereo Preamplifier, ZP1Stereo Preamplifier, ZP1
The ZP1 Preamplifier is based around the same technological insights that brought ZS50 Power Amp to life. Knowledge on component behaviour as well as of the psychology behind our perception. This resulted in a design with few components, stable performance an ability directly drive both a low impedance headphone as well as 100 ohm signal lines.
This is made possible to drive very long signal cables without signal degeneration since we terminate with the same impedance in the power amplifier. No need for balanced cables and extra components.
Remotely controlled.

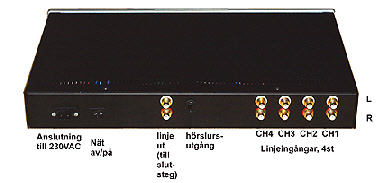

Inputs: 4 line inputs, gold plated. 47k imp.
Line Output: 1, gold plated.
Min load impedance 50 ohms.
Max Output Signal: +12dB
Bandwidth: 5Hz -
DC signal path = most pure output signal.
Headphone output: 1
LED indicator output.
2W Class A line driver.
ZP1Stereo Preamplifier, ZP1
